Sale!

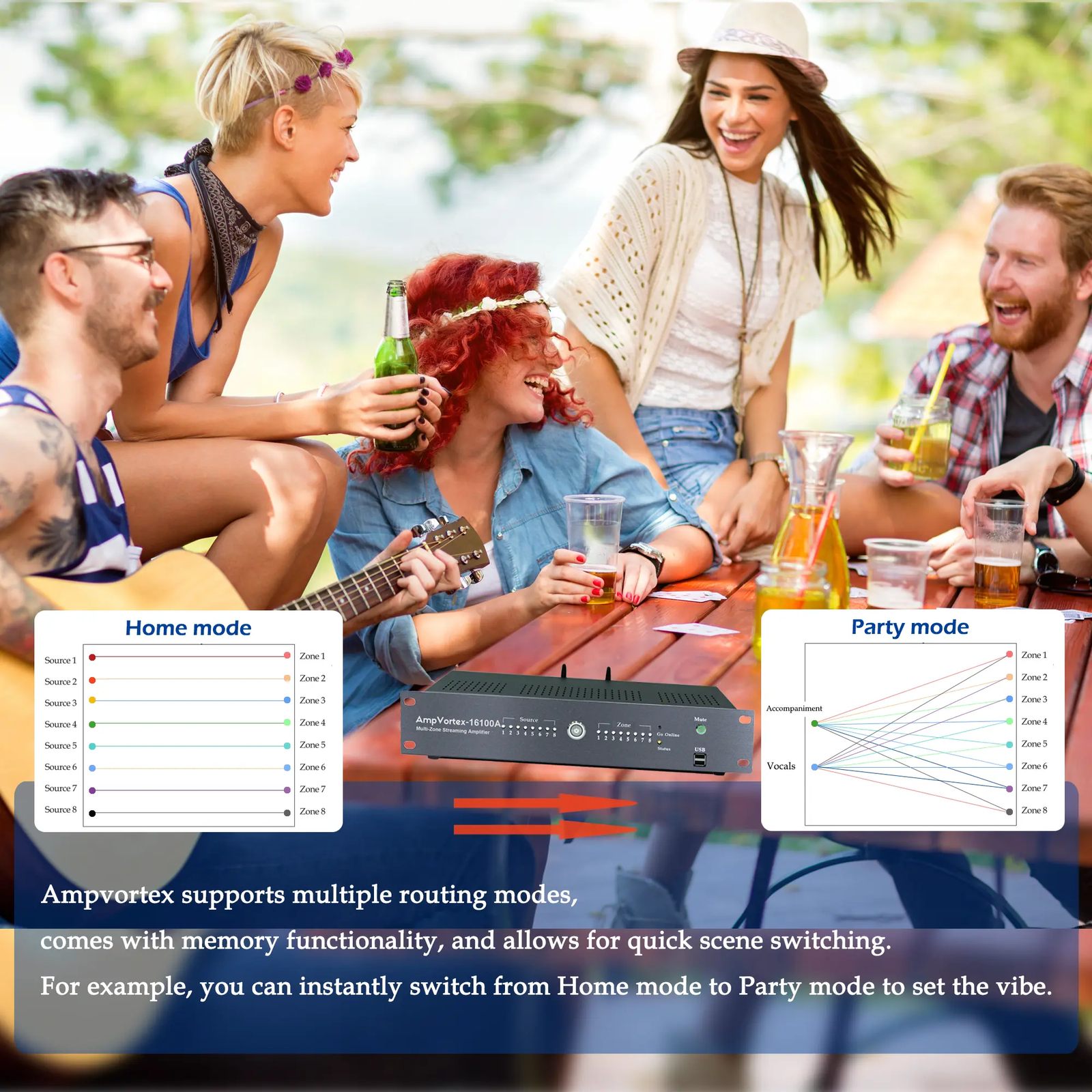

ampvortex support multiple routing modes

Rated 5.00 out of 5 based on 3 customer ratings

(3 customer reviews)

Original price was: $3,549.00.Current price is: $3,194.00.

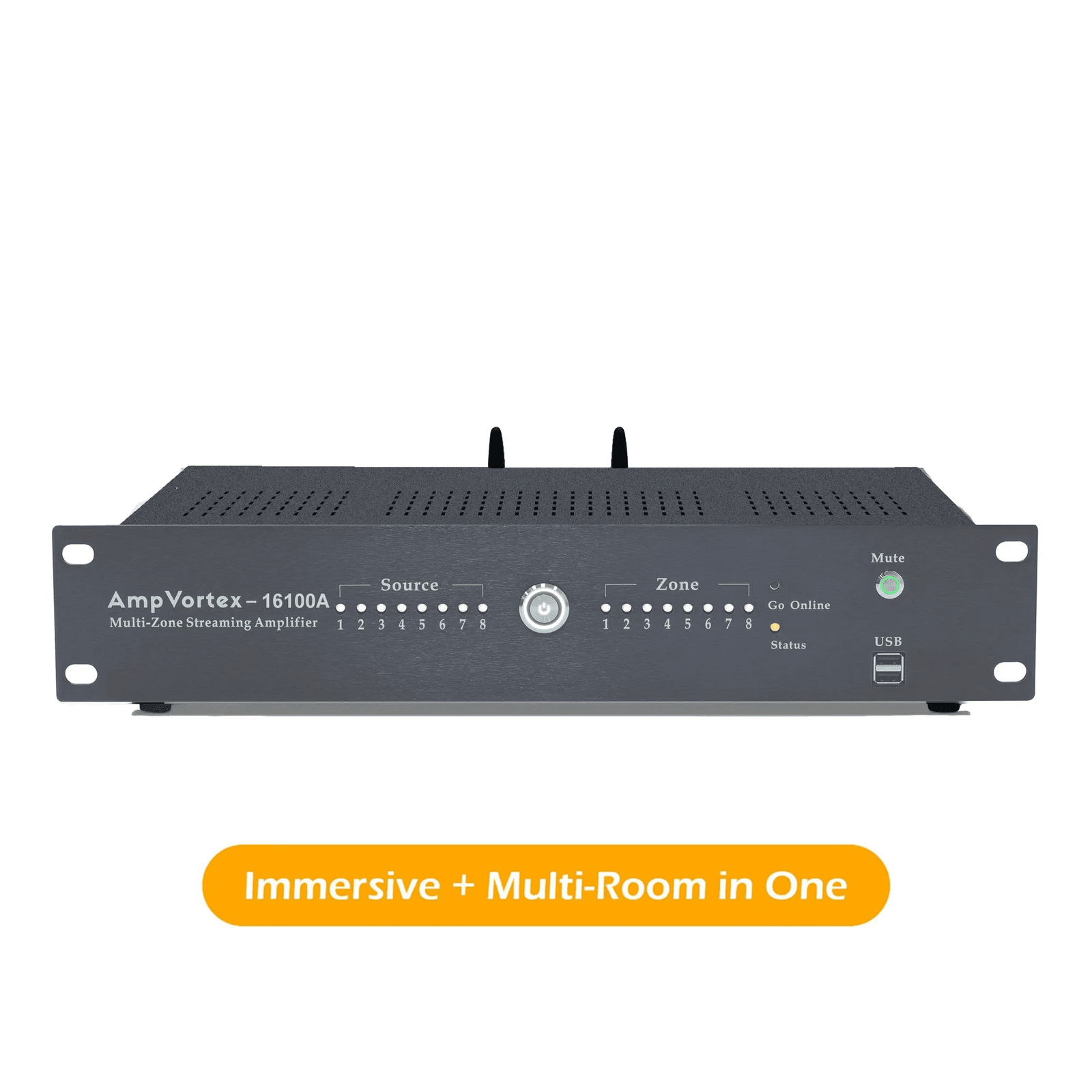

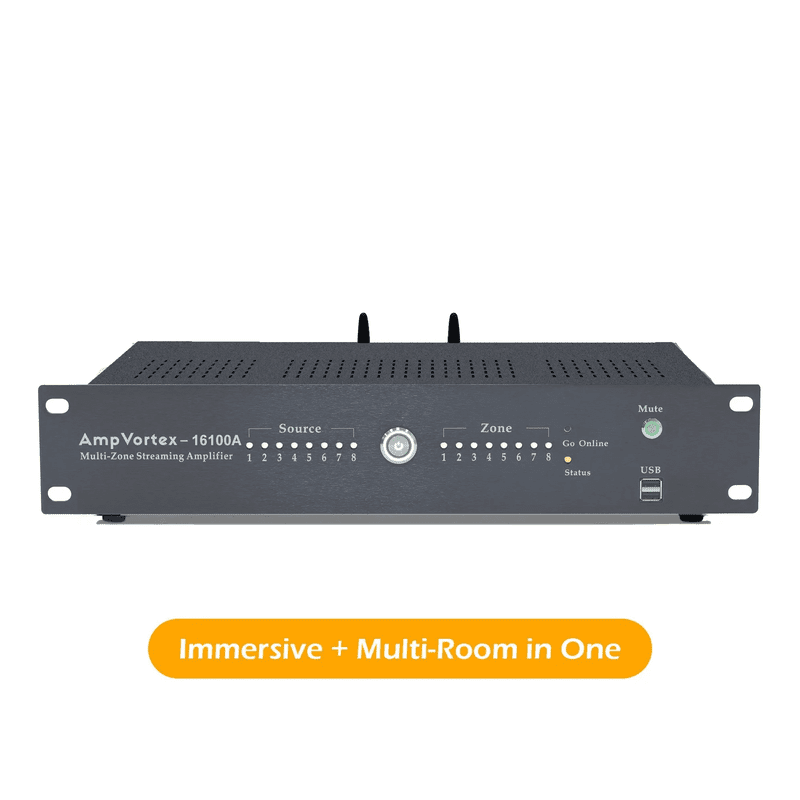

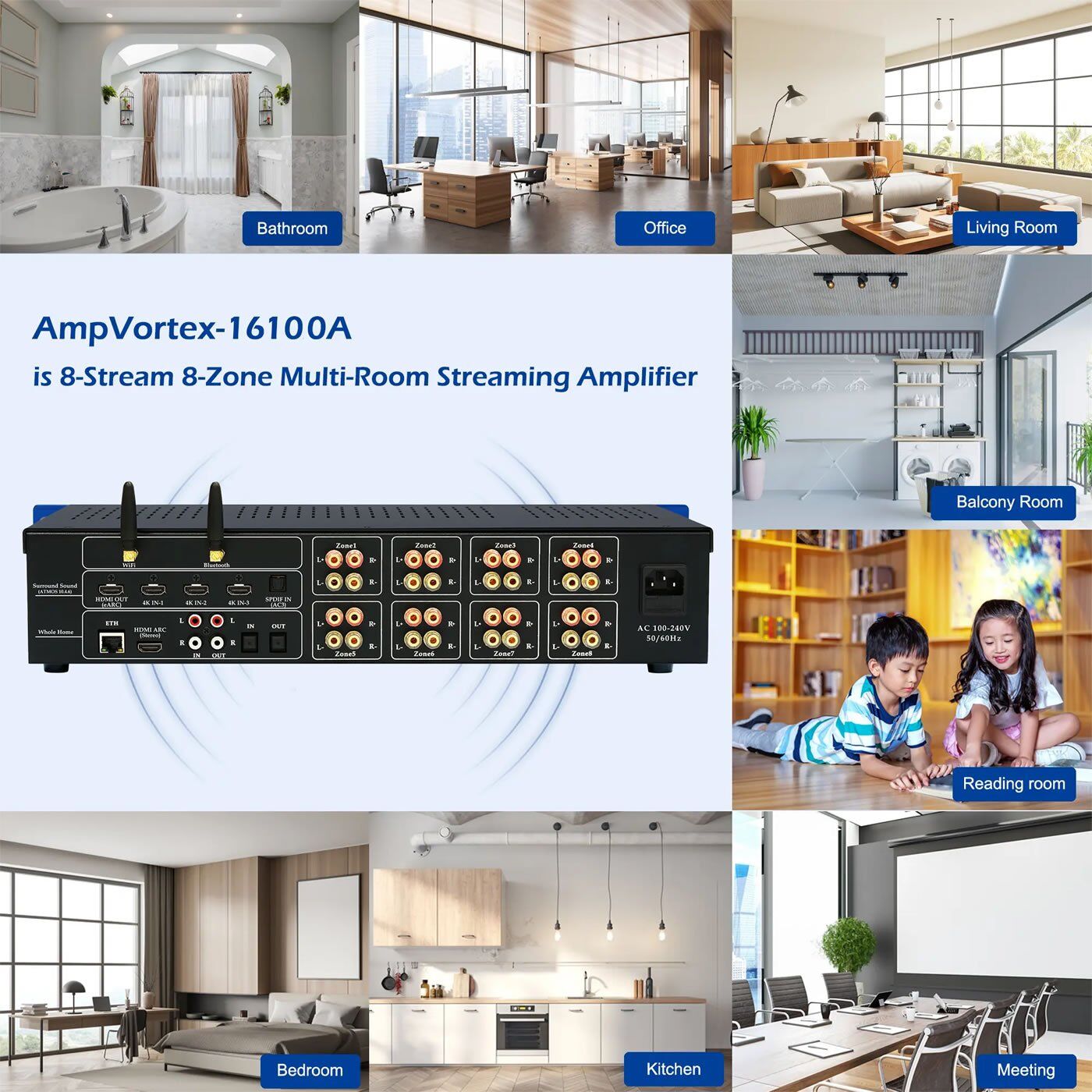

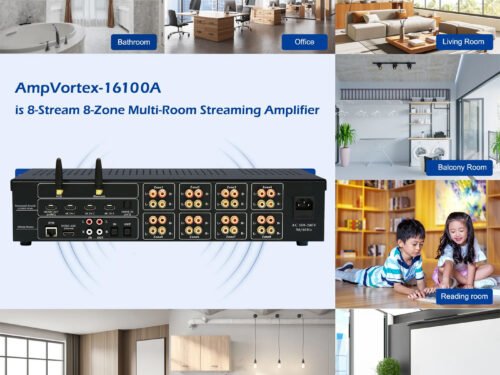

The AmpVortex-16100A is an 8-zone multi-room streaming amplifier, and is core component of a whole home audio system or smart home. Its key feature inlcude 8x WiFi Audio (such as airplay2, Spotify Connect) support, and with a powerful 16 x 110W output, totaling 1760W, outperforming most similar products on the market. It’s the ideal solution for distributing HiFi audio throughout a house or building with pre-wired speakers. You can play different audio sources in various rooms or synchronize playback for a consistent listening experience.

Eclipsa Audio ATMOS

Bluetooth Connect RCA

SPDIF ARC USB

Airplay 2 Spotify Connect dlna

This amplifier offers 8 different input source options to play music across 8 zones, allowing any combination of 8 input sources to be played in any combination of 8 zones. With 8 available streaming options including Qobuz Connect, Airplay 2, Spotify Connect, DLNA, Bluetooth, RCA, SPDIF, USB disk, and HDMI ARC, ATMOS & AMF/Eclipsa Audio (9.1.6), the AmpVortex provides flexibility in music playback. All functions can be controlled using the AmpVortex app mobile.

24h ship 2-year Warranty

UPS Delivery 45-Day Return

Availability: 90 in stock

Category: Multi-zone Amplifiers

Guaranteed Safe Checkout

1. The world’s only amplifier support both immersive sound and multi-room streaming capability!

The AmpVortex-16100A features a great out-of-the-box experience. The APP provides a simple user experience. It can be connected via WIFI, which is easy to set up; it can also be used with a wired connection without the need for network settings—just plug in and it’s ready to use, making it very convenient.

2. Equipped with a robust 16-channel output, each delivering 110W, for a total output power of 1760W. Convenient installation options are provided. It comes with rubber feet, allowing it to be placed on a table. It also features mounting ears, enabling it to be installed in a cabinet.

3. The device and app support advanced digital signal processing, including EQ and mixing, which enhance audio quality and provide a personalized listening experience. These features provide powerful tools to enhance your audio experience, offering both precision and ease of use.

4. Supports 8 source inputs and 8 zone outputs, with each source offering 8 different input options. Wireless transmission methods include DLNA, Spotify, Qobuz Connect, Airplay 1 & 2, and Bluetooth 5.0 (Google Cast is supported on models with “G” as a Suffix). Wired transmission methods include HDMI ARC, Optical, Line In, and USB Disk (ATMOS & AMF/Eclipsa Audio is supported on models with “A” as a suffix). Each zone has 2-channel output, and each zone can be routed to play from different sources.

5.The APP runs smoothly on various mobile platforms and is compatible with a wide range of phone models and operating system versions, including iOS and Android. You can also control it by Control4, Home Assistant (Web API) or KNX (need separate Gateway)

6. It features high performance and high fidelity, ensuring that each zone receives high-quality, stable, and clear audio output. From both technical parameters such as SNR (signal noise ration) and THD+N (total hormonic distortion + Noise), to human auditory perception, it is the best.

7. For any issues you encounter, We will provide after-sales support, Please feel free to contact us via email: service@AmpVortex.com.

Cinema and Zone Channel Distribution – Case Examples

Case	Main Room Cinema Setup	Channels Used in Main Room	Remaining Channels	Zone Allocation Example (Remaining Channels)
1	9.1.6 Atmos (Front LCR + Wide Channels + Side Surrounds + Rear Surrounds + Sub + 6 Height Channels)	16	0	None
2	7.1.4 Atmos (Front LCR + Side Surrounds + Rear Surrounds + Sub + 4 Height Channels)	12	4	Zone 1: Bedroom Stereo Zone 2: Living Room Stereo
3	7.1.2 Atmos (Front LCR + Side Surrounds + Rear Surrounds + Sub + 2 Height Channels)	10	6	Zone 1: Bedroom Stereo Zone 2: Study Stereo Zone 3: Dining Room Stereo Zone 4: Terrace Stereo Zone 5: Kitchen Mono Zone 6: Balcony Stereo
4	5.1.4 Atmos (Front LCR + Surround L/R + Sub + 4 Height Channels)	10	6	Zone 1: Bedroom Stereo Zone 2: Study Stereo Zone 3: Dining Room Stereo Zone 4: Terrace Stereo Zone 5: Kitchen Mono Zone 6: Balcony Stereo
5	5.1.2 Atmos (Front LCR + Surround L/R + Sub + 2 Height Channels)	8	8	Zone 1: Bedroom Stereo Zone 2: Study Stereo Zone 3: Dining Room Stereo Zone 4: Terrace Stereo
6	5.1 Standard Cinema (Front LCR + Surround L/R + Sub)	6	10	Zone 1: Bedroom Stereo Zone 2: Study Stereo Zone 3: Dining Room Stereo Zone 4: Terrace Stereo Zone 5: Bathroom Mono (optional)
7	0.0.0 Pure Multi-Room (No Cinema)	0	16	Zone 1: Bedroom Stereo Zone 2: Study Stereo Zone 3: Living Room Stereo Zone 4: Dining Room Stereo Zone 5: Kitchen Stereo Zone 6: Balcony Stereo Zone 7: Bathroom Stereo Zone 8: Terrace Stereo

5.1 Standard Cinema

Main room channels: 6 (Front LCR + Surround L/R + Subwoofer)
Remaining channels: 10 (available for multi-room stereo or mono zones)
Example allocation: The main cinema uses 6 channels (No. 1–6), while the remaining 10 channels (7–16) can be assigned to the bedroom, study, dining room, terrace, or other multi-room areas.

7.1 Standard Cinema

Main room channels: 8 (Front LCR + Surround L/R + Surround Back L/R + Subwoofer)
Remaining channels: 8 (suitable for multi-room stereo/mono distribution)
Example allocation: The main cinema uses 8 channels (No. 1–8), while the remaining 8 channels (9–16) can be assigned to zones such as bedroom, dining room, and study in stereo, or kitchen and bathroom in mono.

9.1.6 Atmos Cinema

Main room channels: 15 (Front LCR + Front Wides L/R + Side Surrounds L/R + Rear Surrounds L/R + Subwoofer + 6 Height channels)
Remaining channels: 1 (sufficient for a single mono zone only)
Example allocation: The main cinema uses 15 channels (No. 1–15), leaving just 1 channel (16) that is typically assigned to a bathroom or hallway for mono output.

10.4.6 Atmos Cinema

Main room channels: 15 (Front LCR + Front Wides L/R + Side Surrounds L/R + Rear Surrounds L/R + Subwoofers x4 + 6 Height channels)
Remaining channels: 1 (sufficient for a single mono zone only)
Example allocation: The main cinema uses 15 channels (No. 1–15), leaving just 1 channel (16) that is typically assigned to a bathroom or hallway for mono output.

3 reviews for AmpVortex-16100A

5.0 Rating

1-3 of 3 reviews

Aria
Reviewer

February 6, 2026

I installed the AmpVortex-16100A about a month ago. I mostly use Qobuz Connect for music, and the sound has been consistently clean and powerful. Recently I watched a movie and really noticed the impact of ATMOS & AMF/Eclipsa Audio (9.1.6)—the soundstage felt wider and more immersive. It’s been reliable and easy to live with day to day.
Thompson
Reviewer

January 21, 2026

I chose the AmpVortex-16100A for its 16 × 110W power and Dolby Atmos 9.1.6 support, and it exceeded my expectations. The first weekend after installation, we watched an action movie and then switched to music across the whole house.
and more, it support extending to 10.4.6 and LiveTune which better than Dirca Live. That’s awesome!
Michael R
Reviewer

December 25, 2025

I recently remodeled my home and was originally planning to choose between Denon and Marantz for my new home theater setup. I spent weeks comparing specs and prices, and honestly, the cost for similar Atmos-capable models was getting pretty high.

A friend of mine in Los Angeles recommended the AmpVortex-160100A, and I decided to give it a try. After installation, I was genuinely impressed. The sound is powerful, clean, and incredibly immersive. Dolby Atmos effects are very well defined, and the system handles multi-room playback without any hiccups.

What really surprised me was the value. For comparable performance, the AmpVortex-16100A is significantly more affordable than Denon or Marantz alternatives. Watching Avatar at home now feels like a true cinema experience, especially during action scenes and ambient sound moments.

I honestly didn’t expect this level of performance at this price point. Highly recommended for anyone upgrading their home theater or whole-home audio system.

Add a review

AmpVortex-16100A

Rating*

0/5

* Rating is required

Your review

* Review is required

Name

* Name is required

* Email is required

Add photos or video to your review

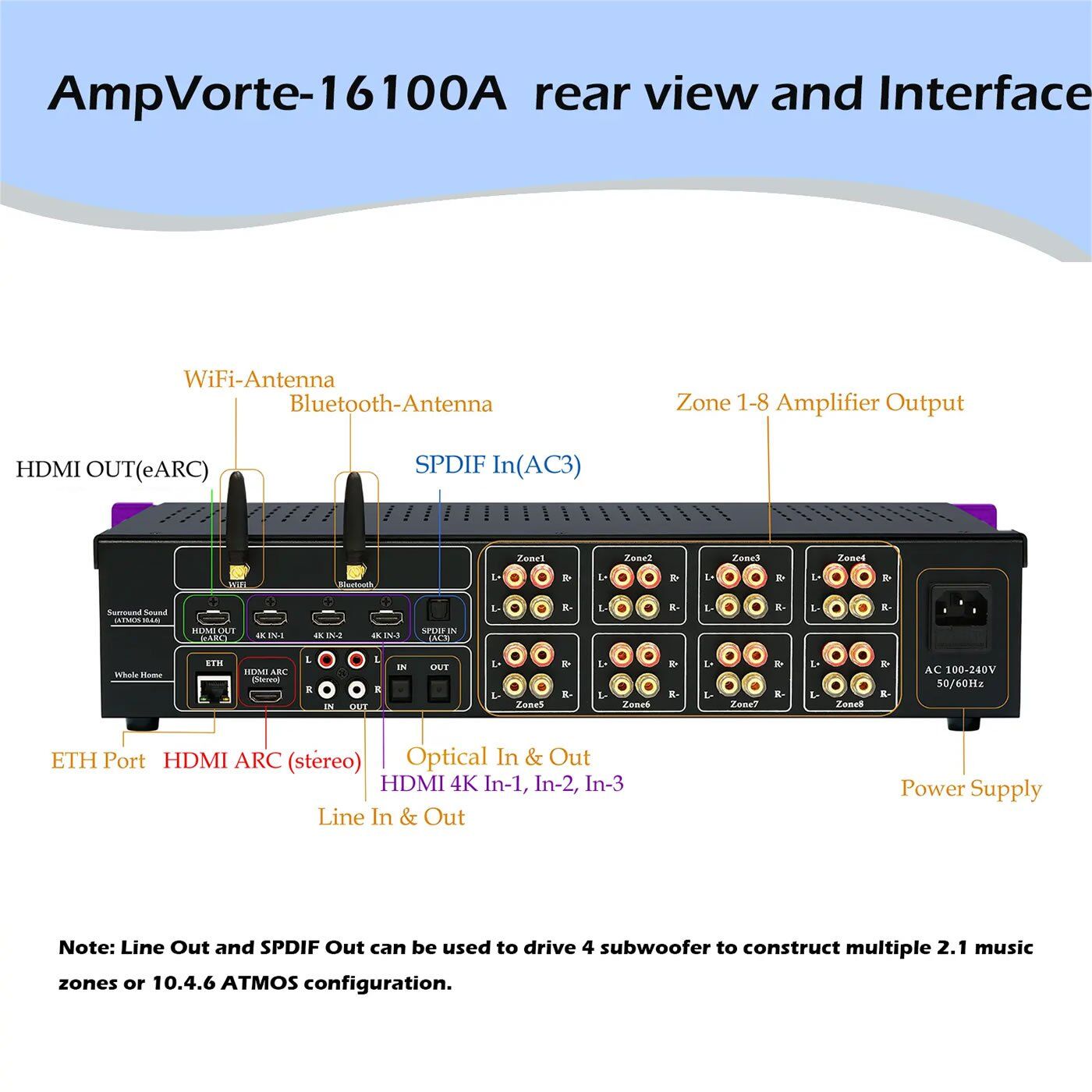

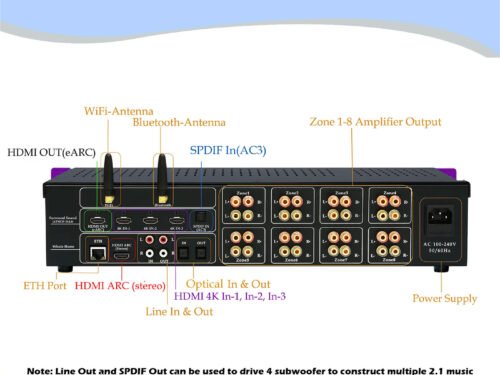

1.How many HDMI interfaces does the AmpVortex-16100A have, and what are their features?

The AmpVortex-16100A is equipped with 5 HDMI interfaces, each serving specific functions to enhance connectivity and audio-visual performance:

1x HDMI ARC (Audio Return Channel):Allows audio to be sent from the TV back to the amplifier, enabling seamless integration with smart TVs and simplifying the connection by reducing cable clutter. In our implementation it is only stereo.
1x HDMI eARC (Enhanced Audio Return Channel):Supports higher bandwidth, enabling the transmission of high-resolution audio formats such as Dolby ATMOS, ensuring superior sound quality. It also acts as HDMI Output: Direct connection to display devices such as TVs or projectors, ensuring high-quality video output. It is HDMI 2.1 with 4K.
3x HDMI Inputs:Multiple HDMI inputs to connect various source devices like Blu-ray players, gaming consoles, and streaming devices, facilitating easy switching between different media sources. It is HDMI 2.1 with 4K and ATMOS streaming support, providing an immersive surround sound experience.

These HDMI interfaces collectively support a wide range of audio and video formats, ensuring compatibility with modern home entertainment systems.

2.How many surround sound formats are supported by the AmpVortex-16100A?

The AmpVortex-16100A supports several advanced surround sound formats, enabling an immersive audio experience:

Dolby Atmos:Offers a three-dimensional soundstage with 9 main channels, 1 subwoofer, and 6 height channels, delivering a cinematic audio experience.
Dolby Digital Plus:Provides high-quality audio with efficient compression, suitable for streaming applications.
Dolby TrueHD:A lossless audio codec that delivers studio-quality sound, commonly used in Blu-ray discs.

These formats ensure that users can enjoy high-fidelity audio across various media sources, from streaming services to physical media.

3.How many surround sound configurations are supported by the AmpVortex-16100A?

The AmpVortex-16100A supports multiple surround sound configurations, allowing customization based on room size and speaker placement:

5.1 Configuration:Consists of 5 main speakers (front left, center, front right, surround left, surround right) and 1 subwoofer.
7.1 Configuration:Includes 7 main speakers (adding rear surround left and right) and 1 subwoofer.
9.1.6 Configuration:Features 9 main speakers, 1 subwoofer, and 6 height channels, providing an immersive three-dimensional audio experience.
10.4.6 Configuration: Features 10main speakers, 4 subwoofer, and 6 height channels, providing an immersive three-dimensional audio experience.

In fact, all format between them are also supported, such as 5.1.2, 5.1.4, 7.1.2, 7.1.4, 9.1.2, 9.1.4, etc.

These configurations can be tailored to fit different room layouts and personal preferences, ensuring optimal sound distribution and clarity.

4.What is the difference between AmpVortex-16100 and AmpVortex-16100A?

The AmpVortex-16100 and AmpVortex-16100A are both advanced multi-zone streaming amplifiers designed for whole-home audio systems. While they share many features, the primary distinction lies in their support for Dolby Atmos.

🔍 Key Differences

Feature	AmpVortex-16100	AmpVortex-16100A
Atmos Support	❌ Not supported	✅ Native Dolby Atmos 9.1.6
Total Output Power	1760W (16 channels × 110W)	1760W (16 channels × 110W)
Streaming Protocols	AirPlay 2, Spotify Connect, DLNA, Bluetooth	AirPlay 2, Spotify Connect, DLNA, Bluetooth
Inputs	HDMI ARC, Optical, USB, Line In	HDMI ARC, Optical, USB, Line In
Control Options	App, WebAPI, KNX	App, WebAPI, KNX
Zone Configuration	8 zones with 8 sources	8 zones with 8 sources

Both models offer 16 channels with 110W per channel, totaling 1760W of power. They support various streaming protocols and input options, and can be controlled via app, WebAPI, or KNX. The main enhancement in the AmpVortex-16100A is its native support for Dolby Atmos 9.1.6, providing an immersive audio experience for home or business environments.

If Dolby Atmos support is a priority for your setup, the AmpVortex-16100A would be the suitable choice. Otherwise, the AmpVortex-16100 offers similar features without Atmos compatibility.

It’s the world’s only combo amplifier that brings together multi-room streaming and immersive surround sound.

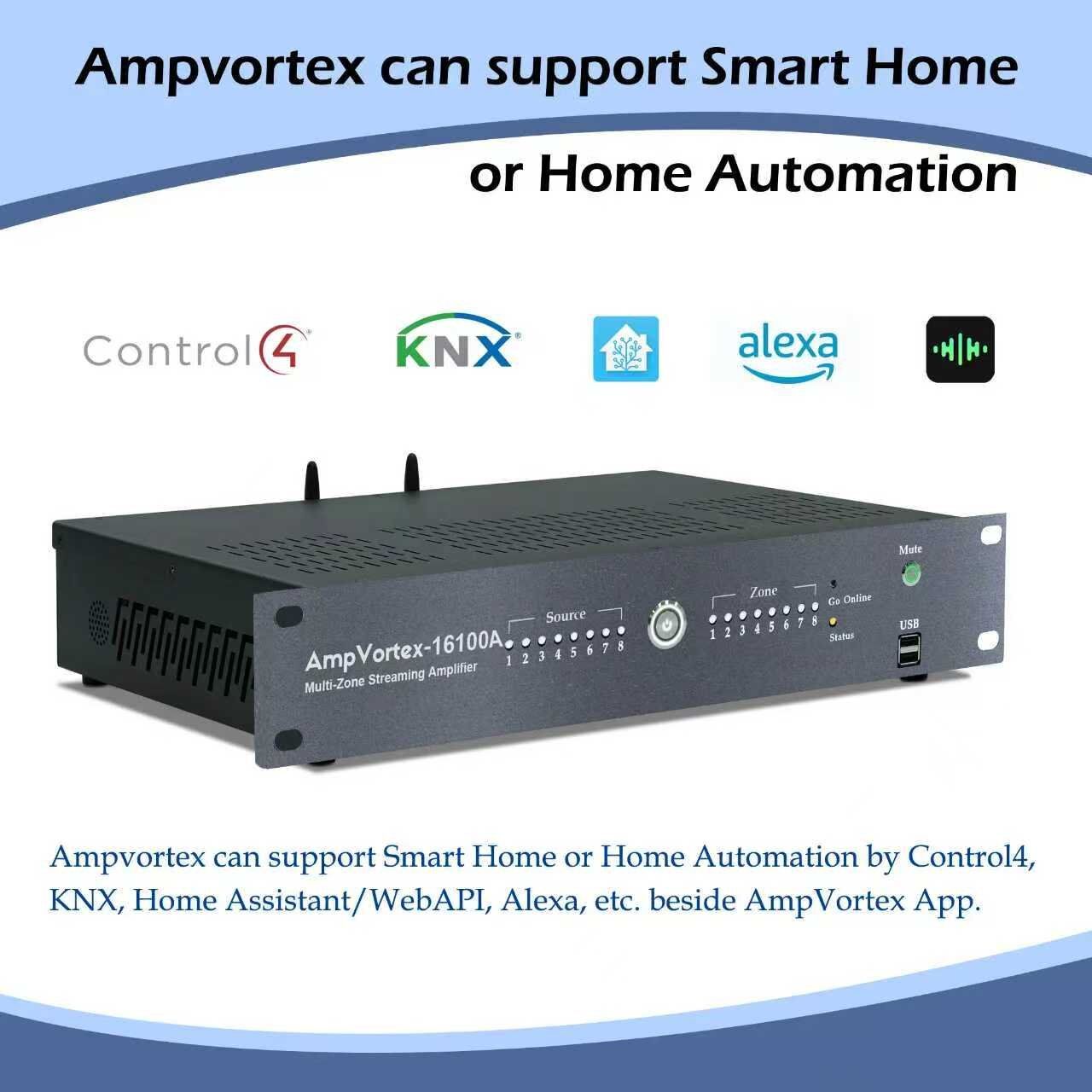

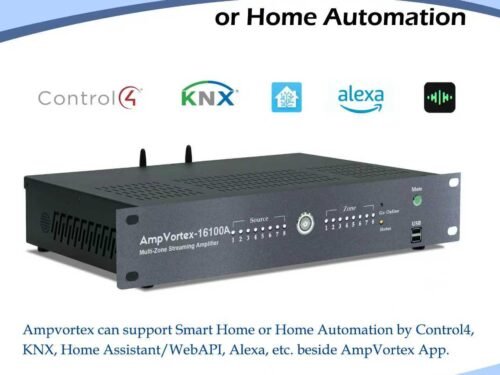

5.Can we use the AmpVortex-16100A with Home Assistant?
Absolutely. You can integrate it into your smart home in several ways: Mobile App, Web API, KNX, or voice assistants. We provide a Web API that allows you to freely connect and control your AmpVortex-16100A through your Home Assistant system. You can also contact us to obtain free home assistant plugin.

6.What is the power capability of AmpVortex amplifiers?

AmpVortex-16060 / 16060A / 16060G:65W per channel
AmpVortex-16100 / 16100A / 16100G:110W per channel
AmpVortex-16200 / 16200A / 16200G:210W per channel

Each model delivers high-quality, reliable power to drive your speakers and fill every zone with crystal-clear sound.
