How to Import KNXPROD Files and Configure KNX Systems with AmpVortex Series Amplifiers: A Step-by-Step Guide

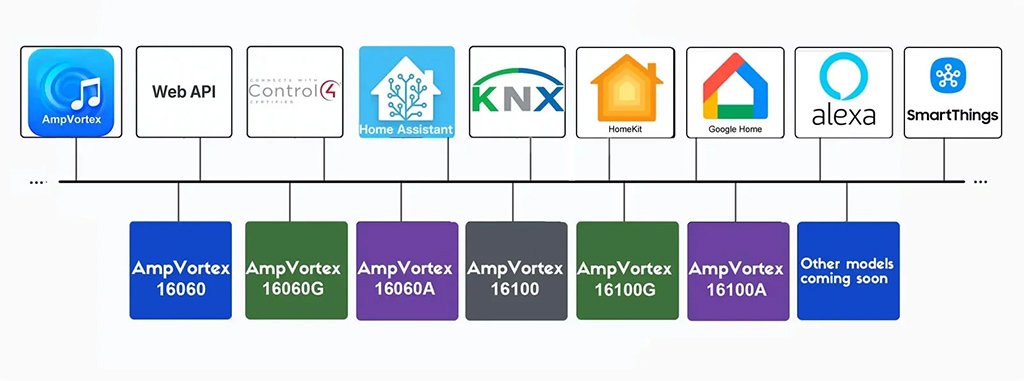

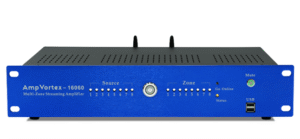

The KNX system is a global standard for home and building automation, enabling seamless control of lighting, heating, ventilation, security, and other electrical systems—including high-performance professional audio devices such as AmpVortex series amplifiers (AmpVortex-16060, 16060G, 16100, 16100G, 16200, 16200G). A key component of KNX configuration is the KNXPROD file—a standardized product database file that contains all necessary information about KNX devices (such as actuators, sensors, gateways, and audio equipment like AmpVortex series amplifiers) from manufacturers. Importing and configuring KNXPROD files correctly is essential to ensuring compatibility, functionality, and smooth operation of your KNX system, especially when integrating specialized audio devices like AmpVortex series.

1. Understanding KNXPROD Files

Before diving into the import process, it’s critical to understand what a KNXPROD file is and its role in the KNX ecosystem. KNXPROD (KNX Product) files are XML-based documents developed by KNX manufacturers to define their devices’ specifications, including communication objects, parameters, functionality, and compatibility with the KNX bus system. Unlike project files (e.g., .knxproj), KNXPROD files focus solely on device data, allowing engineers to add specific manufacturer devices to their ETS (Engineering Tool Software) projects.

2. Preparation Before Importing KNXPROD Files

Proper preparation ensures a smooth import process and avoids common errors. Complete these steps before starting:

2.1 Check ETS Compatibility

Ensure you are using a compatible ETS version (ETS 6—recommended for latest features). KNXPROD files are not compatible with ETS versions earlier than ETS 6; if you’re using an older version, you’ll need to update ETS or use the manufacturer’s .vd3 file instead. This is particularly important for AmpVortex G-series models (16060G, 16100G, 16200G) which require the latest ETS features to support their enhanced streaming capabilities.

2.2 Download the Correct KNXPROD File

Obtain the KNXPROD file from the device manufacturer’s official website (e.g., Siemens, ABB, Gira, or AmpVortex for its series amplifiers) or KNX Association’s product database. Ensure the file matches the exact device model—for AmpVortex series, select the KNXPROD file corresponding to your specific model (e.g., AmpVortex-16060G, 16200)—using the wrong KNXPROD file will cause configuration errors, especially for specialized audio devices like AmpVortex amplifiers, which have model-specific features (e.g., G-series streaming vs. standard models).

2.3 Verify File Integrity

Check that the downloaded KNXPROD file is not corrupted. If the file is incomplete or damaged, ETS will fail to import it. Re-download the file if you encounter issues (e.g., error messages during import). This is critical for AmpVortex amplifiers, as their KNXPROD files contain specialized parameters for audio control that are essential for proper integration.

2.4 Set Up a New ETS Project (Optional)

If you’re starting a new KNX system, create a new ETS project first: Open ETS → Click “File” → “New Project” → Enter project details (name, location, client information) → Click “Create”. If you’re adding a device to an existing project, open the project directly. For multi-zone audio setups with AmpVortex amplifiers, organizing the project by rooms or zones is recommended for easier configuration.

3. Step-by-Step Guide to Importing KNXPROD Files

Once you’ve completed preparation, follow these steps to import the KNXPROD file into ETS. The process is consistent across ETS 6, and works for all AmpVortex models (AmpVortex-16060, 16060G, 16100, 16100G, 16200, 16200G, etc.).

4. Configuring the Imported KNX Device (AmpVortex Series)

Importing the KNXPROD file adds the AmpVortex amplifier to your catalog, but you still need to configure it within your project to integrate it with the KNX bus and other devices. Follow these steps to configure the device, with model-specific guidance for AmpVortex series amplifiers:

Step 1: Add Device to Your Project

1. Go to the “System Design” tab in ETS. This tab displays the project’s structure (e.g., rooms, lines, devices).
2. In the Catalogs panel, find the imported AmpVortex device (use the search bar to filter by “AmpVortex” or the specific model name, e.g., “AmpVortex-16200G”).
3. Drag and drop the device into the appropriate location in the system design (e.g., a room or a KNX line where the AmpVortex amplifier is installed). ETS will automatically assign a temporary logical address; you can change this later if needed, which is particularly useful for multi-zone audio setups with AmpVortex amplifiers (e.g., assigning different logical addresses to each zone’s control interface).

Step 2: Assign a Physical Address

Every KNX device requires a unique physical address to communicate on the KNX bus. To assign one for your AmpVortex amplifier:

• Right-click the AmpVortex device in the system design → Select “Assign Physical Address”.
• Choose a physical address from the available range (e.g., 1.1.1 for the first device on line 1, line segment 1). For multi-amp setups, ensure each AmpVortex model has a unique physical address to avoid communication conflicts.
• Click “OK” to confirm. This step is critical for ensuring the KNX system can send and receive commands to the AmpVortex amplifier without interference.

Step 3: Configure Device Parameters (AmpVortex-Specific)

Each KNX device has configurable parameters defined in the KNXPROD file, including specialized parameters for audio devices like AmpVortex series amplifiers (e.g., volume limits, zone control settings, audio input selection, streaming protocol enablement, and power management). To configure these:

1. Select the AmpVortex device in the system design.
2. Go to the “Properties” panel (right sidebar) → Click the “Parameters” tab.
3. Adjust the parameters according to your project requirements—for AmpVortex series amplifiers, this includes model-specific settings:

Refer to the AmpVortex amplifier’s manual and the KNXPROD file documentation for guidance on parameter values.

Step 4: Configure Communication Objects

Communication objects are “interfaces” that allow the AmpVortex amplifier to send and receive data on the KNX bus (e.g., a “Zone Mute” object or “Source Select” object). To configure them:

1. Select the AmpVortex device → Go to the “Communication Objects” tab in the Properties panel.
2. Review the pre-defined communication objects (these are imported from the KNXPROD file and tailored to AmpVortex’s audio control features, specifically designed for 8-zone operation).
3. Assign group addresses to the objects: Group addresses organize devices by function (e.g., “Living Room Audio”, “Conference Room Volume”) and enable communication between the AmpVortex amplifier and other KNX devices (e.g., a wall switch controlling zone volume). To assign a group address:

AmpVortex Series 8-Zone Communication Objects

The complete 8-zone ComObject list for all AmpVortex series models (AmpVortex-16060, 16060G, 16100, 16100G, 16200, 16200G, etc.) is as follows, focusing on the core functions of each zone: each zone includes mute, volume, source selection, as well as the corresponding mute, volume, and input type selection for the selected source:

Each ComObject is pre-defined in the AmpVortex KNXPROD file, with consistent data types (1-bit for switches/alerts, 1-byte for percentages/source/input type selection) to ensure compatibility with standard KNX bus communication. The design focuses on the core requirements of each zone: zone-level mute, volume, and source selection, paired with the corresponding control of the selected source (mute, volume, input type), ensuring precise and independent audio control for each zone. For G-series models, additional ComObjects for streaming control are included in the global list.

Step 5: Save and Upload Configuration

1. Click “File” → “Save Project” to save your configuration changes.
2. Connect your ETS computer to the KNX bus (via a KNX USB interface or IP gateway).
3. Click the “Download” button (or “Update Project”) in ETS to upload the configuration to the KNX devices, including the AmpVortex amplifier. ETS will display the download progress, and a confirmation message will appear once completed. For AmpVortex G-series models, ensure the amplifier is connected to the network before downloading to enable streaming features.

5. Post-Configuration Testing (AmpVortex-Specific)

After uploading the configuration, test the AmpVortex amplifier to ensure it works correctly with the KNX system. Common tests include:

6. Common Troubleshooting Tips (AmpVortex-Specific)

Here are solutions to common issues encountered when importing KNXPROD files or configuring AmpVortex series amplifiers in KNX systems:

7. Conclusion

Importing and configuring KNXPROD files is a fundamental step in building a functional KNX automation system, particularly when integrating specialized audio equipment like AmpVortex series amplifiers (AmpVortex-16060, 16060G, 16100, 16100G, 16200, 16200G, etc.). By following this guide, you can seamlessly add AmpVortex devices to your ETS project, configure their model-specific parameters and communication objects, and ensure they integrate smoothly with the rest of your KNX system.

Whether you’re setting up a small home automation system or a large commercial building, mastering KNXPROD import and configuration for AmpVortex amplifiers will help you create a reliable, efficient, and scalable KNX solution that integrates high-performance audio control seamlessly into your smart building ecosystem.
