Multi-Room Audio Synchronization:
Why AirPlay Multi-Select and Google Cast Groups Work So Differently
Introduction
When we play music in multiple rooms at the same time, we usually think in simple terms:
Does everything start together?
But behind this everyday experience lies a much deeper technical challenge:
How is synchronization actually achieved across multiple rooms, devices, and networks?
Multi-room audio synchronization is not a single feature or a checkbox. It is a complex system built from clock alignment, buffering strategies, network timing, and error correction. Small architectural decisions at this level directly shape how a system behaves in the real world.
Today’s two dominant consumer ecosystems—Apple AirPlay and Google Cast—approach synchronization in fundamentally different ways:
- AirPlay uses a sender-driven synchronization model
- Google Cast uses a receiver-coordinated group synchronization model
Both approaches can deliver multi-room playback, but they scale differently, tolerate network conditions differently, and feel different as systems grow larger.
Understanding these synchronization models explains why AirPlay and Google Cast may look similar on the surface, yet behave very differently in whole-home environments.
1. What Is Multi-Room Audio Synchronization?
Multi-room synchronization means that multiple playback devices reproduce the same audio content at the same perceived moment.
This requires solving three technical problems simultaneously:
- Clock Alignment
Devices must agree on a shared notion of time. - Buffer Management
Each device must preload audio data and decide exactly when to play it. - Drift Correction
Small timing differences must be continuously corrected during playback.
Even microsecond-level timing differences can become audible when rooms are physically separated.
True multi-room audio systems therefore rely on continuous coordination, not one-time alignment.
2. AirPlay Multi-Select Synchronization: Sender-Driven Model
When a user selects multiple AirPlay targets from an iPhone, iPad, or Mac, the system establishes separate audio streams to each device.
Each selected device receives:
- Its own audio stream
- Playback timestamps
- Timing reference information
The sending device (phone or computer) effectively becomes the master timeline controller.
How It Works
- The sender transmits audio packets independently to each receiver.
- Each receiver buffers incoming data.
- Playback is scheduled based on timestamps provided by the sender.
- The sender continuously adjusts pacing to keep devices aligned.
Architectural Characteristics
- Synchronization is organized upstream at the sender.
- Each device is synchronized relative to the sender, not to each other.
- Network load increases linearly with the number of selected devices.
Practical Implications
- Very stable for small numbers of devices.
- Latency is typically higher because larger buffers are used to protect against Wi-Fi jitter.
- As more devices are added, the sender must manage more streams, increasing CPU and network pressure.
AirPlay Multi-Select is therefore best described as:
Multiple independent streams coordinated by a single sender.

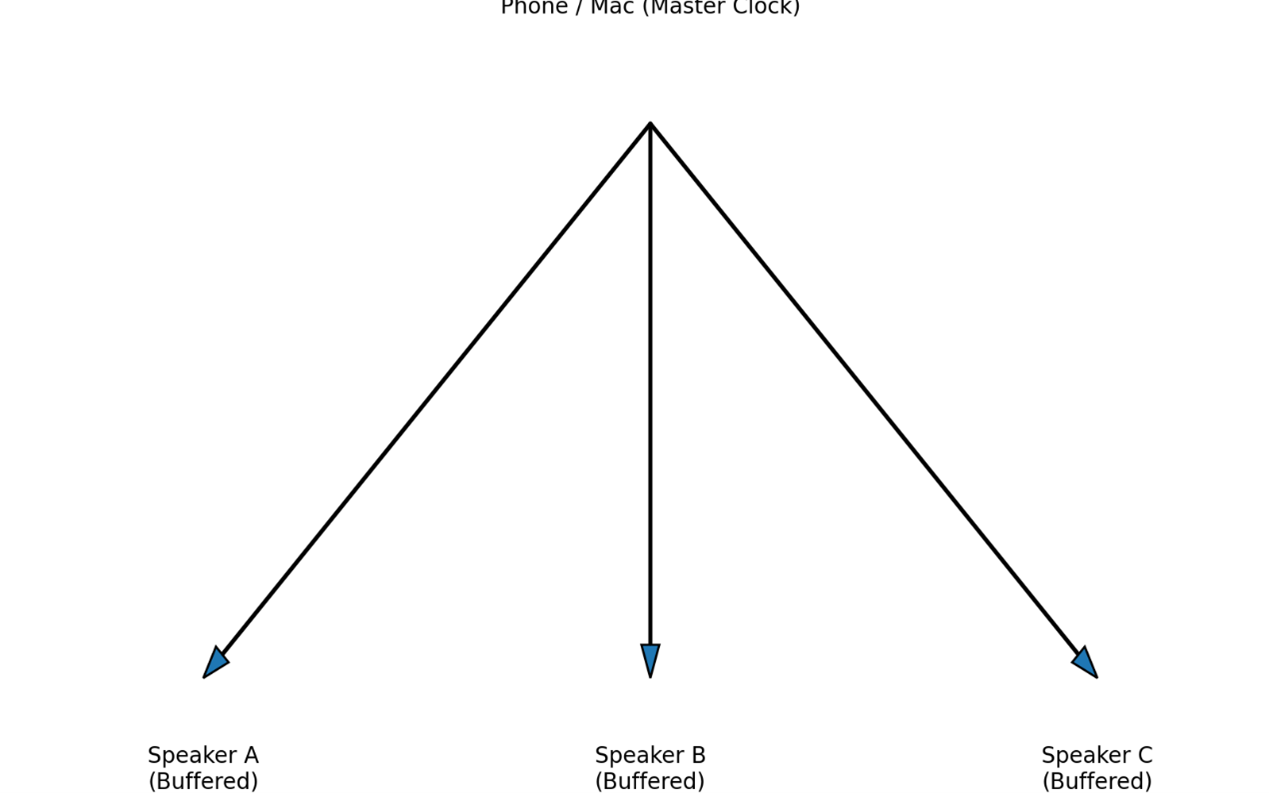

Diagram Placeholder — AirPlay Multi-Select Sync Flow
3. Google Cast Speaker Group Synchronization: Receiver-Coordinated Model
Google Cast approaches multi-room playback from the opposite direction.
Instead of pushing multiple streams from the sender, Google Cast devices form a group first. The group behaves as a synchronized playback cluster.
The sender (phone, tablet, browser) simply tells the group what to play.
How It Works
- User casts to a Speaker Group.
- One device becomes the group timing reference (coordinator).
- Each speaker pulls audio directly from the source.
- Devices exchange timing information inside the group.
- Buffers and clocks are adjusted cooperatively.
Architectural Characteristics
- Synchronization is organized downstream at the receivers.
- Devices synchronize with each other, not with the phone.
- Sender workload is minimal.
Practical Implications
- Scales well to many rooms.
- Network traffic is distributed.
- Group-level calibration and delay correction are possible.
Google Cast Speaker Groups behave like a distributed audio system rather than multiple independent players.

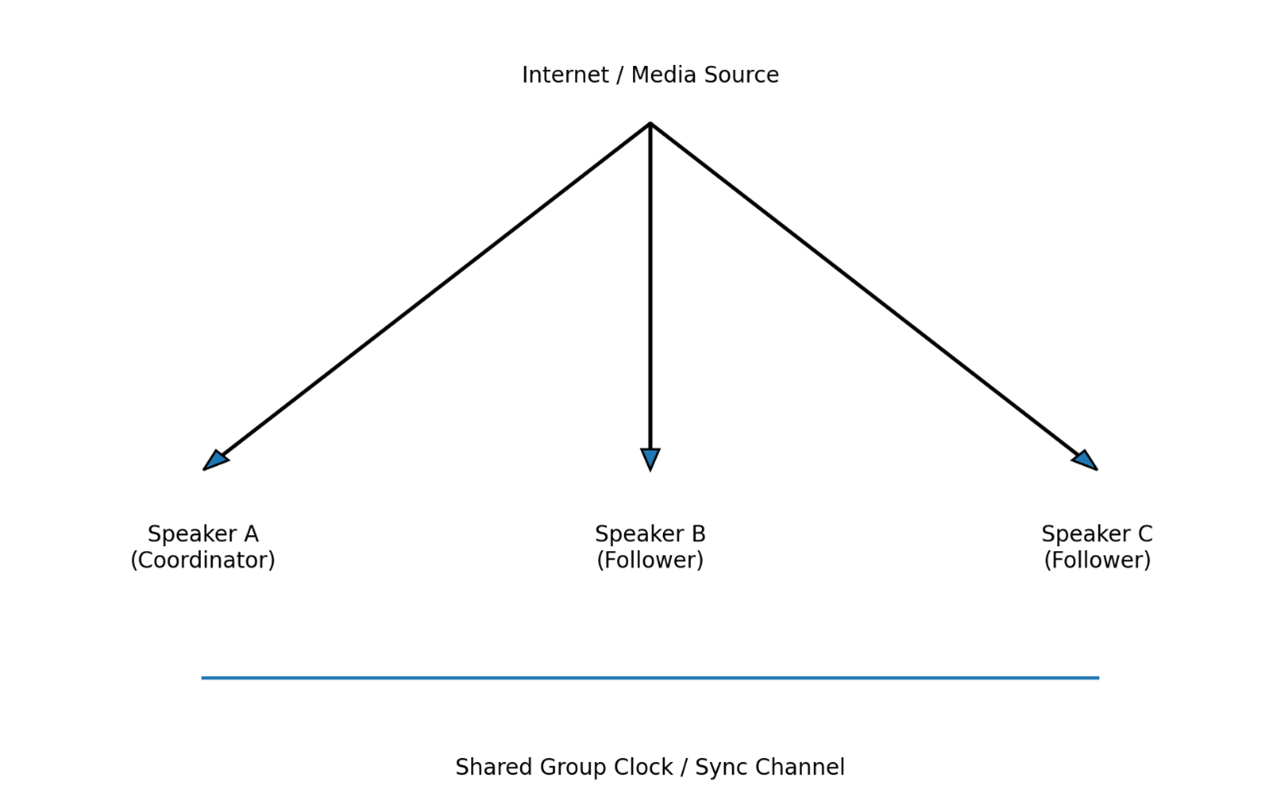

Diagram Placeholder — Google Cast Group Sync Flow
4. Architectural Differences in Synchronization
| Aspect | AirPlay Multi-Select | Google Cast Group |
| Sync Control Location | Sender device | Receiver group |
| Stream Model | Multiple unicast streams | Independent fetch per device |
| Clock Authority | Phone / Computer | Group coordinator |
| Scalability | Limited by sender | Scales with group |
| User Calibration | None | Group delay correction |
| Typical Latency | Higher | Lower |
The most important distinction:
AirPlay synchronizes devices to the sender.
Google Cast synchronizes devices to each other.
5. How Synchronization Architecture Shapes Real-World Experience
Latency
AirPlay typically introduces higher latency due to larger buffers.
Google Cast aims for lower latency through group-level control.
Stability
AirPlay is extremely stable for small groups.
Google Cast remains stable as group size increases.
Expansion
Adding rooms to an AirPlay session increases sender workload.
Adding rooms to a Cast group mostly increases receiver coordination.
These differences explain why users often report:
- AirPlay feels simple and reliable for a few rooms.
- Google Cast feels more “whole-home” at scale.
6. Synchronization in Multi-Zone Amplifiers and Whole-Home Systems
Modern multi-zone amplifiers often expose each zone as an independent AirPlay and Google Cast endpoint.
This allows:
- AirPlay Multi-Select for Apple-centric households.
- Google Cast Groups for large synchronized systems.
A well-designed system embraces both models:
- AirPlay = convenience and ecosystem integration
- Google Cast Group = scalable synchronization
Rather than competing, the two protocols complement each other.
7. Conclusion: Synchronization Architecture Defines System Limits
Multi-room audio quality is not determined only by codec, bitrate, or hardware power.
It is fundamentally shaped by synchronization architecture.
- AirPlay Multi-Select is a sender-driven synchronization model.
- Google Cast Speaker Groups are a receiver-coordinated synchronization model.
Both can deliver excellent experiences—but they are optimized for different scales and usage patterns.
Understanding this distinction transforms “protocol choice” from a feature checklist into an architectural decision.
