AmpVortex Power Pool Commercial Amplifier WebServer User Manual
Product Series：PP4650 / PP41300 / PP42600 / PP45200
1. Introduction
This document covers the web-server configuration interface for AmpVortex Power Pool commercial high-power amplifiers.
The Power Pool amplifier series consists of four models with different power ratings:
- PP4650: 650 W
- PP41300: 1300 W
- PP42600: 2600 W
- PP45200: 5200 W
2.Web-Server Login
The default administrator username is admin, and the default login password is admin. Enter your login credentials and click Sign In to access the web configuration page.
Note: For better device security, it is highly recommended that you modify the default password after your first login.
3.Web Interface Overview
The web UI uses a split-panel layout:
– Left sidebar: Function navigation area for selecting configuration modules.
– Right panel: Configuration area for the currently-selected function.
There are ten functional modules available on the left navigation bar: Network Settings, Source Selection, Input EQ, Routing Mix, Filter, AMP Config, Output Delay, Streaming Audio, Device Login, Logout.
4.Network Settings

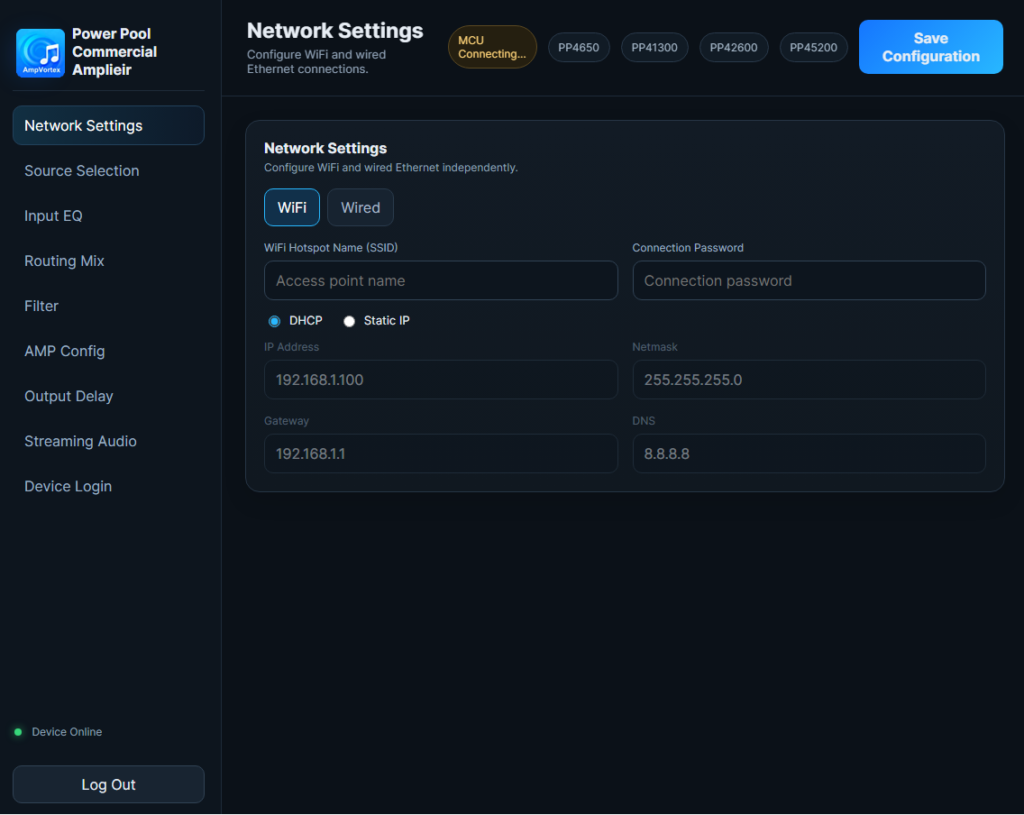

Network Settings allows independent configuration for WiFi and wired Ethernet connections.
4.1 WiFi Configuration
- Select the WiFi tab.
- Input the WiFi hotspot name (SSID) and connection password.
- Two IP assignment modes are available:
- DHCP: Automatically obtain network parameters from the router.
- Static IP: Manually configure IP Address, Netmask, Gateway and DNS.
4.2 Wired Ethernet Configuration
- Select the Wired tab.
- Two IP assignment modes are available:
- DHCP: Automatically obtain network parameters.
- Static IP: Manually configure IP Address, Netmask, Gateway and DNS.
Click Save Configuration to apply all modified network settings.
5. Source Selection
This module assigns audio sources for four output channels (Input 1-4). A total of 16 source channels are supported: Cloud1-4, Dante1-4, Analog1-4, HDMI1-2, SPDIF1-2.
– Each output channel can be assigned an independent audio source.
– The same audio source can be selected for multiple output channels.
Click Save Configuration to save your source-selection setup.
6. Input EQ
Input EQ provides independent 100band graphic EQ adjustment for Input 1 through Input 4.
-Per-band gain adjustable range: -18 dB ~ +18 dB.
-Frequency bands: 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz, 8000 Hz, 16000 Hz.
-Zero All: One-click function to reset all EQ bands of the currently-selected input channel to zero.
Click Save Configuration to store EQ parameters.
7. Routing Mix
Routing Mix features a flexible 4×4 input-output routing matrix (4 inputs × 4 outputs).
– Any input channel can be routed to one or multiple output channels.
– Each input-to-output cross-point supports gain adjustment from -12 dB to +12 dB; default value is 0 dB.
– Use the check-box toggle to enable or disable each cross-point path.
Click Save Configuration to save matrix routing settings.
8. Filter
Filter configures independent high-pass and low-pass filters for Output 1-4.
Both High-Pass and Low-Pass filters offer two working modes:
A. Flat: Bypass and disable the corresponding filter.
B. Frequency: Activate the filter and set the cutoff frequency. Frequency adjustment range: 20 Hz ~ 20000 Hz.
High-pass and low-pass filters can be set separately for each output channel. Remember to click Save Configuration after completing adjustments.
9. AMP Config
AMP Config configures amplifier-specific parameters for Output 1-4, including output mode, rated power and limiter settings.
A. Output Mode: Four selectable modes: HiZ, LoZ, 70V, 100V.
B. Rated Power: Optional rated power: 100 W / 200 W. Please match this value with the specifications of your connected loudspeakers.
C. Limiter Settings
- Check or uncheck Limiter Enabled to turn the limiter ON or OFF.
- Adjustable parameters: Threshold (dB), Attack (ms), Release (ms). Set these parameters according to your loudspeaker specifications.
Click Save Configuration to apply amplifier-configuration changes.
10. Output Delay
Output Delay sets independent audio time-alignment delay for Output 1 and Output 2.
– Adjustable delay range: 0 ms ~ 50 ms, with 1 ms adjustment steps.
Click Save Configuration to confirm delay values.
11. Streaming Audio
Streaming Audio is used to configure streaming parameters for Cloud 1-4.
– Service Type supports seven streaming services:
- SoundMachine
- SoundTrack
- Spotify for Business
- MusicStyling
- Custom Channels
- MachineMood
- Other – User Defined
– Each Cloud channel supports a maximum Stream Count of 4. The total stream count across all Cloud channels cannot exceed 4.
– Account and password credentials for streaming services must be filled in for each Cloud channel.
Click Save Configuration to save streaming-audio settings.
12. Device Login
Device Login is used to modify the web-login password for the amplifier admin account.
– The username is fixed as admin and cannot be modified.
– Enter your Current Password and your desired New Password, then click Update Password to save changes.
13. Logout
Select Logout on the left sidebar to log out of the web-server configuration interface.
