Professional Guides for Designing Modern Multi-Zone Commercial Audio Systems

AmpVortex Commercial Audio Solutions Series

A successful bar or pub depends on more than drinks, décor and service. Music shapes the atmosphere, influences how long guests stay and helps define the identity of the venue.

However, designing an effective bar audio system requires more than installing speakers and connecting a conventional amplifier. Modern venues often contain several areas with different acoustic conditions, operating hours and entertainment requirements.

The main bar may need energetic music, while dining areas require comfortable background audio. A private room may play an independent source, and an outdoor terrace must maintain suitable volume without disturbing neighbouring properties.

This makes flexible multi-zone control essential.

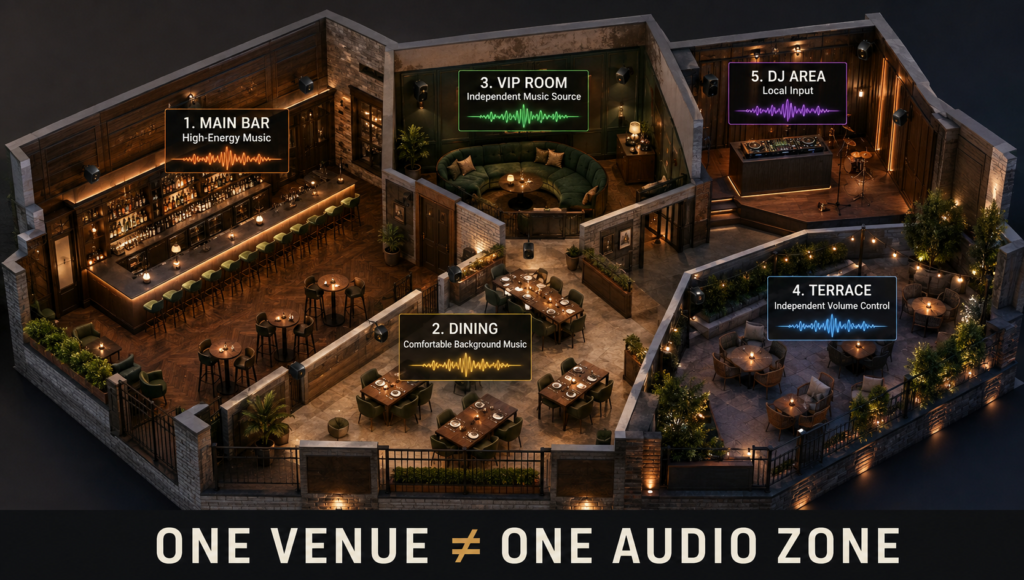

One Venue, Multiple Audio Environments

A bar or pub should rarely be treated as a single audio zone. Depending on the layout, the system may need to cover:

Main bar
Dining area
Lounge or VIP room
Dance floor
Outdoor terrace
Entrance and reception
Restrooms
Private event spaces

Each area may require independent volume, source selection, equalisation and scheduling.

For example, the dining area can maintain relaxed background music while the main bar operates at a higher level. A private room can use its own streaming source, while the terrace follows the main programme at a separately controlled volume.

A properly designed pub music system gives operators this flexibility without making daily operation complicated.

Adapting to Different Times of Day

Bars and pubs often change character throughout the day.

During lunch or early evening, music may serve as subtle background ambience. As the venue becomes busier, the volume and tonal balance may need to increase. Later in the evening, the system may switch to a DJ, live performance, television audio or another local source.

A flexible audio platform should support these transitions through preset scenes such as:

Lunch
Happy Hour
Evening
Live Music
DJ Mode
Private Event
Closing Time

Staff can recall the appropriate configuration without manually adjusting every zone. Scheduled scenes can also automate routine changes throughout the day.

Combining Streaming and Local Sources

Modern venues may use licensed commercial music services alongside local entertainment sources.

A bar audio system may need to manage:

Commercial background music platforms
Internet radio
AirPlay 2
Spotify Connect
Bluetooth
USB playback
Televisions
DJ mixers
Live music systems
Paging or announcement sources

Matrix routing allows any available source to be sent to one zone, several zones or the entire venue. This makes it possible to play a sports broadcast in the main bar, background music in the dining area and an independent playlist in a private lounge at the same time.

Consistent Sound Through Built-In DSP

Bars are acoustically challenging environments. Hard surfaces, high ceilings, changing occupancy levels and background conversation can all affect sound quality.

Built-in digital signal processing helps optimise each area independently through:

Equalisation
High-pass and low-pass filtering
Output limiting
Speaker protection
Input and output level control
Delay adjustment
Zone-specific sound tuning

The goal is not simply maximum volume. A well-designed system should provide clear, balanced and consistent sound throughout the venue while avoiding uncomfortable hotspots and excessive noise.

The Right Commercial Amplifier Architecture

Different areas may require different speaker and amplification configurations.

Low-impedance 4Ω or 8Ω speakers are often suitable for lounges, private rooms and performance-focused spaces. Larger venues with many distributed ceiling or surface-mount speakers may benefit from 70V or 100V systems.

The right commercial amplifier should support the required speaker architecture while providing sufficient headroom for busy operating conditions.

AmpVortex supports 4Ω, 8Ω, 70V and 100V applications, allowing integrators to design one coordinated audio platform for both entertainment areas and distributed background music zones.

Simplified Control for Staff

Daily control must remain simple, even when the underlying system is sophisticated.

AmpVortex enables staff to manage volume, source selection, playback and scenes through mobile devices, IP wall controllers, touch panels or building automation systems.

Integration with KNX, Control4, RTI and Web API also allows audio to work alongside lighting and other venue systems. A single “Evening” scene, for example, can adjust lighting, recall the correct music source and set appropriate volume levels across multiple zones.

One Integrated Platform for Modern Venues

AmpVortex combines streaming, DSP, matrix routing, multi-zone control and amplification within one integrated platform.

This reduces the number of separate devices required and gives system integrators a scalable foundation for bars, pubs, lounges, clubs and multi-purpose entertainment venues.

Whether the project requires relaxed daytime background music, independent private-room audio or coordinated evening entertainment, AmpVortex makes it possible to manage every area as part of one flexible system.

Designing a Bar Audio System?

AmpVortex provides scalable multi-zone audio solutions for hospitality and commercial environments.

Contact our team to discuss your project requirements, speaker configuration, zone layout and system integration.

Learn more at www.ampvortex.com
