Commercial audio amplifiers are expected to support different loudspeaker distribution architectures. Depending on the project, an amplifier may need to drive conventional low-impedance loudspeakers or distributed 70V and 100V loudspeaker systems.

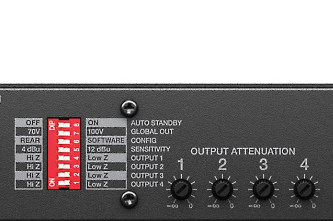

Traditionally, selecting between these operating modes has often been treated as a hardware configuration task. On many commercial amplifiers, installers must physically access the amplifier and use DIP switches or other hardware selectors to configure the required output mode.

AmpVortex Power Pool Commercial Amplifiers take a different approach.

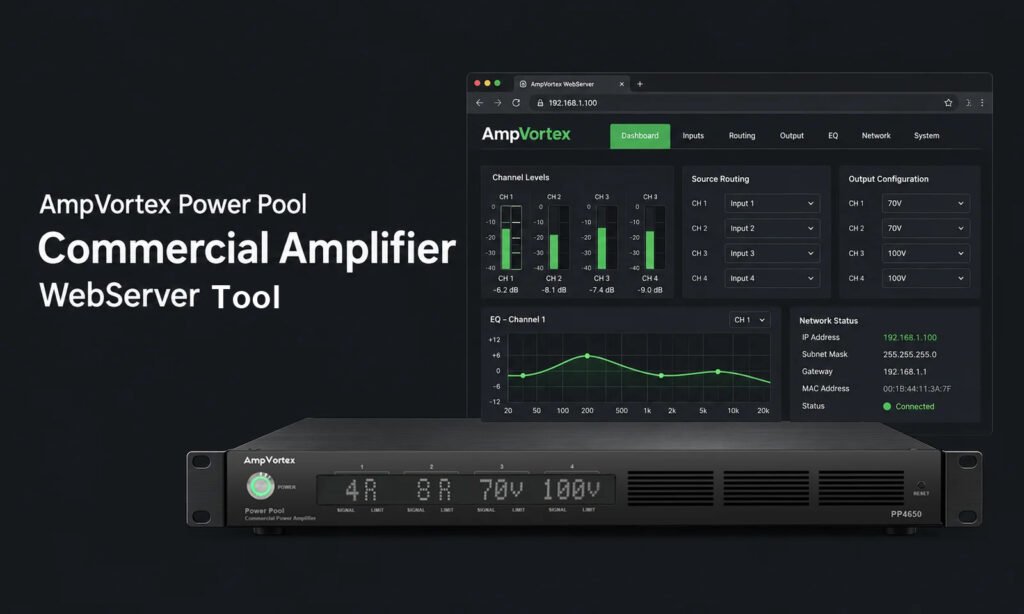

Lo-Z, 70V and 100V operating modes are configured directly through the AmpVortex Web Server.

This may appear to be a small difference in user interface design, but in a modern commercial audio installation, it has much larger implications for commissioning, system management and long-term maintenance.

From a Hardware Setting to a System Parameter

A hardware DIP switch is simple, but it has one fundamental limitation: someone must physically access the amplifier to see or change its configuration.

In a small installation, this may not be a major concern.

In a hotel, shopping mall, office building, school, restaurant chain or large commercial property, however, amplifiers may be installed inside equipment racks, technical rooms or restricted-access areas.

With AmpVortex, the output configuration becomes part of the amplifier’s digital system configuration.

Through the Web Server, authorized technicians can configure the appropriate loudspeaker operating mode without searching for switches on the rear or internal panel of the amplifier.

The difference is fundamental:

Traditional architecture

Amplifier → Physical DIP Switch → Lo-Z / 70V / 100V

AmpVortex architecture

Web Server → Amplifier Configuration → Lo-Z / 70V / 100V

The operating mode becomes visible and manageable as part of the complete system.

Clearer Configuration During Commissioning

Commercial installations frequently involve different loudspeaker architectures.

A restaurant may use low-impedance loudspeakers in one application, while a hotel corridor or large public area may use distributed 70V or 100V loudspeakers.

During commissioning, technicians need to verify that the amplifier configuration matches the connected loudspeaker system.

With physical switches, this means checking the amplifier itself.

With AmpVortex, the technician can view and configure the operating mode directly from the Web Server.

This provides a much clearer commissioning workflow:

Select the amplifier → configure the required output mode → verify the configuration → continue system setup.

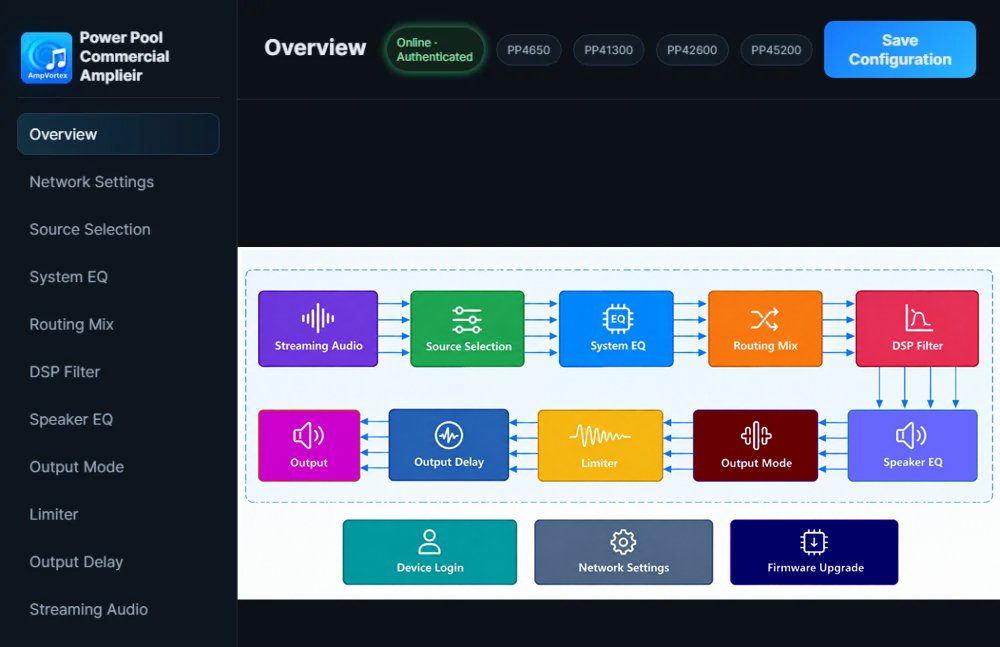

The output mode becomes part of the same interface used to configure other amplifier and DSP parameters.

Reducing Configuration Errors

One of the most practical advantages of software-based configuration is visibility.

A physical switch tells you its status only when somebody looks at it.

A software-defined setting can be presented clearly in the system interface.

This matters because an incorrect output configuration is not simply a user-interface problem. The amplifier operating mode needs to match the loudspeaker distribution architecture for which the system has been designed.

By bringing Lo-Z, 70V and 100V selection into the Web Server, AmpVortex makes this important parameter easier to identify and verify during commissioning and servicing.

Instead of asking:

“What position is the switch in?”

The engineer can check the configured operating mode directly through the management interface.

No Need to Physically Access the Amplifier

Consider an amplifier installed deep inside a fully populated equipment rack.

Changing a DIP switch may require the technician to:

stop what they are doing, locate the correct amplifier, gain physical access to the rack, identify the correct switch and verify its position.

With AmpVortex, configuration can be performed through the Web Server from a connected computer or other supported browser device.

This becomes particularly valuable when multiple amplifiers are deployed in the same project.

The larger the installation becomes, the more valuable centralized and visible configuration becomes.

Better for System Integrators

Commercial AV systems are normally commissioned as complete systems rather than as individual pieces of hardware.

An integrator may need to configure:

DSP parameters, routing, input sources, output levels, loudspeaker processing and amplifier operating modes.

It therefore makes sense for the loudspeaker output architecture to become part of the same digital commissioning environment.

AmpVortex treats Lo-Z / 70V / 100V selection as part of system engineering, rather than as an isolated mechanical setting on the amplifier chassis.

This creates a more consistent workflow for system integrators.

Easier Maintenance Years After Installation

The benefits become even more apparent after the original installation team has left the project.

Imagine a hotel audio system that was installed three years ago.

A new technician arrives to service the system.

With a traditional amplifier, the technician may need to inspect the hardware to determine how each amplifier has been configured.

With AmpVortex, the configuration is available through the Web Server.

The technician can understand the system more quickly and determine whether the amplifier is configured for:

Lo-Z, 70V or 100V operation.

This makes servicing and future system modifications more straightforward.

Software-Defined Amplification

This design reflects a larger philosophy behind the AmpVortex Power Pool Commercial Amplifier platform.

Modern commercial amplifiers should no longer behave like isolated analog devices with a few digital features added around them.

They are increasingly becoming intelligent networked components of the building infrastructure.

AmpVortex therefore moves important configuration functions into a software-managed environment wherever practical.

The amplifier is no longer simply:

Input → Amplification → Loudspeaker

It becomes:

Network Management + DSP + Routing + Streaming + Amplification + Loudspeaker System Configuration

Lo-Z / 70V / 100V configuration is part of this transition.

Hardware Switch vs. AmpVortex Web Configuration

	Traditional Hardware Selection	AmpVortex
Lo-Z configuration	Physical switch / DIP switch	Web Server
70V configuration	Physical switch / DIP switch	Web Server
100V configuration	Physical switch / DIP switch	Web Server
Physical amplifier access	Typically required	Not required for configuration
Configuration visibility	Must inspect hardware	Visible in Web interface
Multi-amplifier commissioning	Device-by-device physical checking	Software-based workflow
Future servicing	Hardware inspection may be required	Configuration can be checked through Web Server
System philosophy	Hardware-defined	Software-defined

More Than Removing a DIP Switch

The purpose of Web-based configuration is not simply to eliminate a physical switch.

It is about making amplifier configuration visible, accessible and manageable as part of the complete commercial audio system.

For a single amplifier, the difference may seem small.

For a commercial project containing multiple amplifiers, multiple loudspeaker architectures and equipment installed across technical spaces, the operational advantage becomes much more significant.

AmpVortex Power Pool Commercial Amplifiers therefore allow Lo-Z, 70V and 100V operating modes to be configured directly through the Web Server, bringing another traditionally hardware-defined function into the modern networked AV environment.

No DIP switches. No unnecessary physical access. Clear software-based configuration.

From Hardware-Defined to Software-Defined Commercial Audio

The AmpVortex Power Pool platform is designed around a simple principle:

If an important system parameter can be intelligently managed, it should become part of the system—not remain hidden behind a hardware switch.

Web-based Lo-Z, 70V and 100V configuration is one example of how AmpVortex is bringing commercial amplification into a more connected, manageable and software-defined future.

Learn more at www.ampvortex.com
