Long-Distance Amplifier-to-Speaker Wiring with AmpVortex: High-Fidelity Audio for Smart Homes
In high-end residential and commercial audio projects, long-distance wiring between amplifiers and speakers can exceed 100 meters. Proper cable selection is crucial to maintain audio fidelity, minimize power loss, and ensure system reliability. AmpVortex’s high-performance multi-room audio solutions address these challenges, seamlessly integrating with KNX home automation systems.
1. Overview
AmpVortex amplifiers are designed for luxury smart homes, providing multi-zone audio with native KNX integration. When planning long-distance speaker runs, engineers must consider cable resistance, power loss, and voltage drop to ensure optimal sound quality.

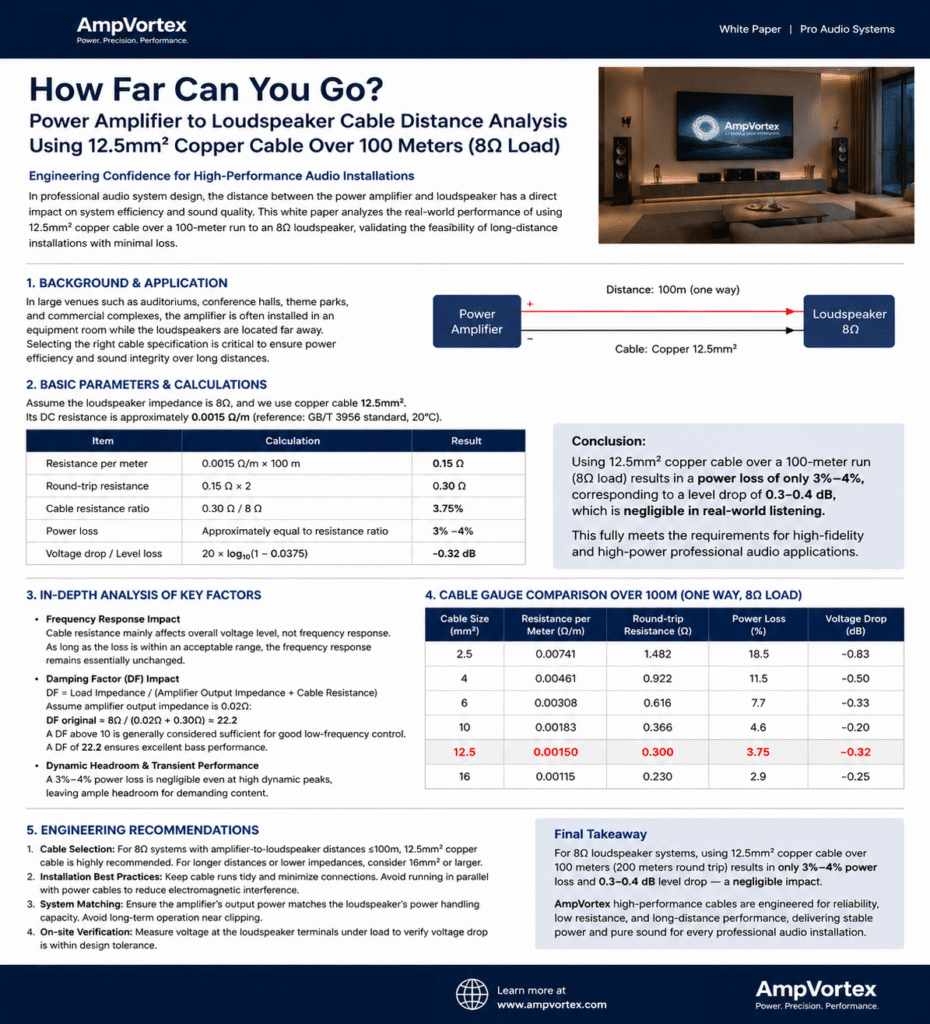

For example, using 12.5 mm² copper cable to connect an 8 Ω speaker over 100 meters:
- Single-wire resistance:0015 Ω/m ×100 m = 0.15 Ω
- Round-trip resistance:15 × 2 = 0.3 Ω
- Line resistance ratio:3 / 8 Ω≈ 3.75%
- Power loss:~3–4%, voltage drop ~0.3–0.4 dB
This ensures negligible audio degradation and preserves high-fidelity performance.
2. AmpVortex Advantage
- KNX Native Integration:Effortless configuration using ETS software for multi-zone setups.
- Long-Distance Signal Transmission:High-quality audio delivery over extended cable runs, ideal for large homes or multi-story buildings.
- Flexible Multi-Zone Routing:Any input can be routed to any output zone, giving designers complete freedom.
- Pilot Project Support:AmpVortex encourages small-scale pilot installations to validate performance before full deployment.
3. Cable Selection and Power Loss
Speaker Impedance | Cable | Round-Trip Resistance | Power Loss | Recommended AmpVortex Line Gauge |
8 Ω | 12.5 mm² | 0.3 Ω | 3–4% | 12.5 mm² |
4 Ω | 12.5 mm² | 0.3 Ω | 6–7% | 16–25 mm² |
AmpVortex systems are engineered to accommodate these variations while maintaining clarity, dynamic range, and system reliability.
4. Pilot Project Workflow
AmpVortex supports a structured pilot workflow:
- Deploy a small-scale multi-zone setup with AmpVortex amplifiers and speakers.
- Test long-distance runs and KNX integration using real-world room layouts.
- Validate audio fidelity, control responsiveness, and system reliability.
- Scale to full multi-room deployment based on pilot results.
5. Conclusion
For luxury smart homes, 100 m runs of 12.5 mm² copper cable to 8 Ω speakers are fully feasible with AmpVortex systems. The minimal power loss (3–4%) and negligible audio attenuation (~0.3–0.4 dB) ensure high-fidelity performance. AmpVortex amplifiers, combined with KNX integration, provide a reliable, scalable, and user-friendly solution for multi-room audio applications.
